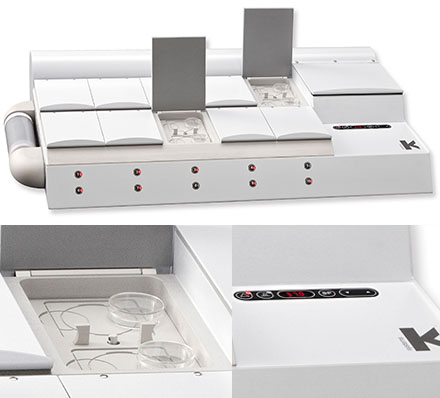

G185 Long Term Flat Bed Incubator
Experience the K-SYSTEMS innovative Long Term IVF Incubator for optional environment conditions for embryos. An unique space saving stacking system makes the IVF incubator an attractive alternative to conventional incubators.
More than 1000 installations worldwide
Low gas consumption and low cost operation with integrated CO₂ / N₂ gas mixer
Grade A air quality circulates through HEPA/VOC filter
Temperature stability - 6 separate sensors to control and regulate temperature
Extensive data logging and alarm system
Key Features
- Ambient humidity: The G185 is an incubator with ambient humidity which strongly minimizes the risk of fungal growth inside the incubator and makes it easier to clean
- Practical: Includes ten individual incubation chambers to ensure minimal stress and risk of cross contamination for the embryos. Significant space saving
- Monitoring: Effective heating and gas control system assuring all critical parameters are monitored and controlled to maintain stable pH, heating, gas levels.
- Superior Filtering and Hygiene: High efficiency particle filter to remove airborne particles. VOC filter to remove organic compounds.
- Responsive Gas Control: Set the required specifications to mix CO2 and O2. Uses pure CO2 and N2 (Optional)
- Economical: Low running costs due to low gas consumption and use of pure gas
- Certified: CE Marked
- Consistent Heating: Dedicated heating plates with grooves ensure direct heat transfer to the dish
Product Specifications
| Dimensions (WxDxH) mm | 922 x 570 x 165 |
| Weight | 38 kg |
| Temperature range ambient to | 20 °C - 42.9 °C |
| CO₂ / O₂ range | 2-10% / 2-20% |
| Gas consumption (Typically) |
CO₂ : 1.5 l/h N₂ : 7 l/h |
| Recovery time |
CO₂ < 2 min. O₂ < 4 min. |
| Data logger software - alarm functions | Yes |
| Option PH Monitoring | Yes, with SensorTech only |
| Option external CO₂ sensors | Yes, with SensorTech only |
| Option external temp. sensors | Yes, with SensorTech only |
Order Codes
| Part Number | Part Description |
|---|---|
| 22200-230 | G185ST 230V Optional pH and External Monitoring |
| 22200-110 | G185ST 110V Optional pH and External Monitoring |
| 22400-230 | G185 Standard 230V |
| 22400-110 | G185 Standard 110V |
| 23063-1 | Falcon dish inserts |
| 23064-1 | Nunc dish inserts |
| 23069 | Vitrolife dish inserts |
| 23070 | LifeGlobal dish inserts |
| 23061-1 | Falcon pH dish inserts for G185ST |
| 23060-1 | Nunc pH dish inserts for G185ST |
| 23079 | Vitrolife pH dish inserts for G185ST |
| 23080 | LifeGlobal pH dish inserts for G210/G185 |
Order codes for additional features and options
| Part Number | Part Description |
|---|---|
| 23050-110-O | Stacking System 120V for 3 pcs. G210/G185 |
| 23050-230-O | Stacking System 230V for 3. pcs. G210/G185 |
| 11010 | F100 Thermometer |
| 11010P1 | F100 Thermometer, calibrated with 1 probe |
| 11010P2 | F100 Thermometer, calibrated with 2 probes |
| 11006 | STS Sensor Temperature sensor for validation |
| 53830 | HEPA Inline disc filter for G185/G210 |
| 22166 | HEPA/VOC Filter for G185/G185ST |
| K59549 | HEPA/VOC filter - CODA® Regfular Inline Purple Filter Assy - w/connectors |
| CIPR-001 | HEPA/VOC filter - CODA® Regular InLine Purple Filter |
