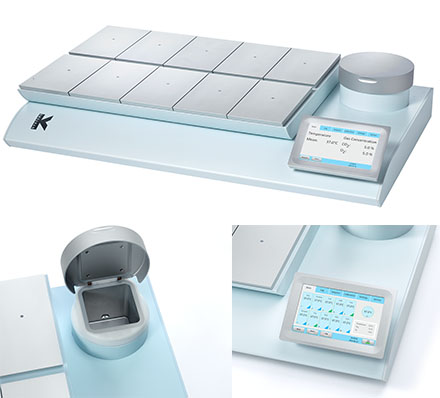

G210 InviCell

Long Term Incubator

Encapsulating 20 years of incubator development, the G210 InviCell incubator combines optimal embryo growth conditions with advanced user control. It is the ideal incubation solution for a busy clinic.

  • Defining, Creating, Monitoring and constantly sustaining the optimal environment for human embryos
  • Thoughtful design and advanced user control options make everyday work with the G210 effective, safe and comfortable
  • With its compact size, low daily running costs and the option of a stacking system the G210 is the ideal solution for a busy Clinic

Key Features

  • Space Saving: Ten individual incubation chambers to ensure minimal stress and risk of cross contamination for the embryos. Significant space saving
  • Ambient humidity: The G210 is an incubator with ambient humidity which strongly minimizes the risk of fungal growth inside the incubator and makes it easier to clean
  • Advanced User Control: Advanced intuitive user interface with dedicated security system
  • Heating: Dedicated heating plates with grooves ensure direct heat transfer to the dish
  • Safe: Electro-magnetic fields eliminated by non-inductive EM Neutra™ technology (patented)
  • Economical: Low running costs because of low gas consumption and use of pure gas
  • Responsive Gas Control: Set the required specifications to mix CO2 and O2. Uses pure CO2 and N2 (optional)
  • Superior Filtering and Hygiene: High efficiency particle filter to remove airborne particles. VOC filter to remove organic compounds
  • Independent External monitoring: An option for independent external monitoring of key parameters including temperature and gas concentration
  • Optimal Environment: Embryo conditions, including pH levels, are kept completely stable through advanced and accurate software control of gas and temperature thus providing stress free incubation
  • Tracking and Alarm: Data logging and alerts with K-Link™ extensive ethernet based monitoring
  • Certified: CE Marked

Product Specifications

Dimensions (WxDxH) mm 860 x 550 x 180
Weight 53 kg
Temperature range 35 - 42 °C
Gas Concentration CO₂ : 5.0%
O₂ : 5.0%
Connection to 100% CO2 and 100% N2 Yes
Gas consumption (Typically) CO2: 0.7 l/h
N2: 7 l/h
Datalogger system - K-Link Yes
External Alarm Port Yes
Power consumption Max: 270 W
Ambient humidity and temperature Max 75% RH
20-30°C
Heating plates NUNC/Falcon/Vitrolife
Prepared for pH Yes, Plus Model Only
Prepared for external monitoring Yes, Plus Model Only
No of temperature sensors 11, (21, Plus Model Only)

Order Codes

Part Number Part Description
60000 G210 InviCell Plus Optional pH and External Monitoring
59500 G210 InviCell
23063-1 Falcon dish inserts
23064-1 Nunc dish inserts
23069 Vitrolife dish inserts
23070 LifeGlobal dish inserts
23061-1 Falcon pH dish inserts for G210 InviCell Plus
23060-1 Nunc pH dish inserts for G210 InviCell Plus
23079 Vitrolife pH dish inserts for G210 InviCell Plus
23080 LifeGlobal pH dish inserts for G210/G185

Order codes for additional features and options

Part Number Part Description
SS-600018 SignipHy Trak Pod - Optical pH server built into G210
SS-600019 SignipHy Trak Station - Tablet for pH monitoring for up to 8 incubators/sensors
SS-400020 SignipHy qc2 alignment tool - for weekly alignment - 1 year life
SS-400019 SignipHy sv2 sensor (10 pack) - Consumables - 1 week life
23050-110-O Stacking System 120V for 3 pcs. G210/G18
23050-230-O Stacking System 230V for 3. pcs. G210/G185
59655 XLR6 Alarm Connector
11010 F100 Thermometer
11010P1 F100 Thermometer, calibrated with 1 probe
11010P2 F100 Thermometer, calibrated with 2 probes
11006 STS Sensor Temperature sensor for validation
53830 HEPA Inline disc filter for G185/G210
K59548 HEPA/VOC filter - ORIGIO Inline Filter Assy - w/connectors
ULTRA001 HEPA/VOC filter - ORIGIO InLine Filter
59558 K-720 HEPA/VOC Filter (G210 a-models) (pack of 2)
59556 K-730 HEPA/VOC Filter (G210 b-models) (pack of 2)
59922 Lid Plugs for G210 (pack of 10)
