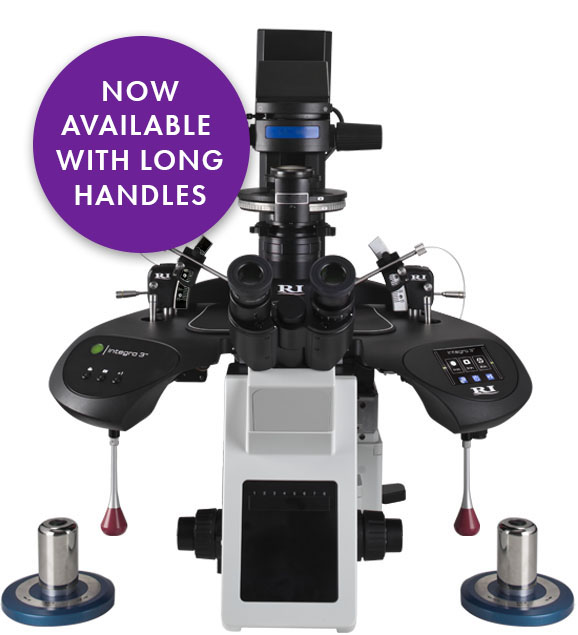

RI Integra 3
Every detail of the RI Integra 3™ is geared towards one goal - to ensure you create the best possible conditions for ICSI and sample manipulation.
We recognise that temperature and time are critical within an ART lab. RI Integra 3™ is ultra-responsive and effortlessly smooth, so it's quick and easy to use, thanks to RI's advanced mechanical design. You can change micropipettes in seconds, which can transform the efficiency of your lab overnight.
We have increased the size of the integrated heated stage by 40% but kept the footprint to a minimum to keep your work area uncluttered.
Key Features
- No Cold Spots
- Thermosafe™ maintains sample temperature with a gentle stream of warm air under the Petri dish
- Super-Fast
- Improved rapid micropipette set-up with one-step angle adjustment
- Practical
- Motion sensor LED light underneath the stage for improved visibility when changing objectives
- Safe
- Heating system status indicator light and alarm monitors every second of the process. A log is kept of every alarm triggered
- Integrated
- Large built-in mechanical XY stage plus temperature controllers with easy access buttons and touch screen
- Accurate
- New extra-fine mechanisms for smooth and precise movement of the stage and micropipettes
Product Specifications
| Heating System |
Thermosafe™ Air Heating System with Heated Metal Insert: 25mm aperture (standard) 16mm aperture (optional) ITO Heated Glass Insert (optional) |
| Temperature Controller |
Accuracy: better than ±0.1ºC when calibrated against known
reference Resolution: 0.1ºC Setpoint Temperature Range: 30-45ºC |
| Display | 3.5″ colour LCD touch screen display for temperature control |
| Connectivity | USB socket for connection to PC running RI Viewer™ software |
| Syringes | Choice of SAS (air), SAS-SE (air) and SOS (oil) |
| Weight |
Maximum weight of microscope mounted components (excluding
front and rear adaptors): 10.4kg Actual weight is configuration dependent |
| Dimensions | Footprint (not including microscope): width 56cm, depth 38cm |
| Power Supply |
Input: 100-240VAC, 50-60HZ, Max. 1.8A, Class 1 Output: 12VDC, Min. 11A (132W) |
| Operating Range |
Temperature: 15ºC (59ºF) to 40ºC (104ºF) Humidity:15% to 85% RH (non condensing) |
| Micropipette Compatibility | Compatible with CooperSurgical micropipettes (or other industry standard 1.0mm outside diameter micropipettes or equivalent specification). |
Order Codes
Please use the table below to select the correct part number for your equipment.
For Saturn Fixed , other microscopes and any other system not covered by the part numbers below, contact our Customer Service team in your region
| Microscope Manufacturer | Model | Syringe Choice | Part Number | Description |
|---|---|---|---|---|
| Nikon | Ti2 | None | 6-54-100-14 |
RI Integra 3 Thermosafe Nikon No Syringes |
| Nikon | Ti2 | 2 x SAS | 6-54-100-15 |
RI Integra 3 Thermosafe Nikon 2 x SAS |
| Nikon | Ti2 |
1 x SAS, 1 x SAS-SE | 6-54-100-16 |
RI Integra 3 Thermosafe Nikon 1 x SAS 1 x SAS-SE |
| Nikon | Ti2 | 2 x SAS-SE | 6-54-100-17 |
RI Integra 3 Thermosafe Nikon 2 x SAS-SE |
| Nikon |
Ti-S, Ti-U, Ti-E TE2000,TE200, TE300 | None | 6-54-100-01 |
RI Integra 3 Thermosafe Nikon No Syringes |
| Nikon | Ti-S, Ti-U, Ti-E,TE2000,TE200, TE300 | 2 x SAS | 6-54-100-02 |
RI Integra 3 Thermosafe Nikon 2 x SAS |
| Nikon | Ti-S, Ti-U, Ti-E,TE2000,TE200, TE300 |
1 x SAS, 1 x SAS-SE | 6-54-100-03 |
RI Integra 3 Thermosafe Nikon 1 x SAS , 1 x SAS-SE |
| Nikon | Ti-S, Ti-U, Ti-E,TE2000,TE200, TE300 | 2 x SAS-SE | 6-54-100-04 |
RI Integra 3 Thermosafe Nikon 2 x SAS-SE |
| Olympus | IX53, IX73, IX83,IX51, IX71, IX81 | None | 6-54-100-05 |
RI Integra 3 Thermosafe Olympus No Syringes |
| Olympus | IX53, IX73, IX83,IX51, IX71, IX81 | 2 x SAS | 6-54-100-06 |
RI Integra 3 Thermosafe Olympus 2 x SAS |
| Olympus | IX53, IX73, IX83,IX51, IX71, IX81 |
1 x SAS, 1 x SAS-SE | 6-54-100-07 |
RI Integra 3 Thermosafe Olympus 1 x SAS, 1 x SAS-SE |
| Olympus | IX53, IX73, IX83,IX51, IX71, IX81 | 2 x SAS-SE | 6-54-100-08 |
RI Integra 3 Thermosafe Olympus 2 x SAS-SE |
| Olympus | IX50, IX70 | 2 x SAS | 6-54-100-13 |
RI Integra 3 Thermosafe Olympus IX1 2 x SAS |
| Olympus | IX1 Series | None | 6-54-100-18 |
RI Integra 3 Thermosafe Olympus IX1 No Syringes |
| Leica | DMi8, DMIx000B, DMIRB | None | 6-54-100-09 |
RI Integra 3 Thermosafe Leica No Syringes |
| Leica | DMi8, DMIx000B, DMIRB | 2 x SAS | 6-54-100-10 |
RI Integra 3 Thermosafe Leica 2 x SAS |
| Leica | DMi8, DMIx000B, DMIRB |
1 x SAS, 1 x SAS-SE | 6-54-100-11 |
RI Integra 3 Thermosafe Leica 1 x SAS, 1 x SAS-SE |
| Leica | DMi8, DMIx000B, DMIRB | 2 x SAS-SE | 6-54-100-12 |
RI Integra 3 Thermosafe Leica 2 x SAS-SE |
| Leica | DMi8, DMIx000B, DMIRB | 2 x SAS | 6-54-110-01 |
RI Integra 3 No Thermosafe Leica 2 x SAS |
| Leica | DMi8, DMIx000B, DMIRB | 2 x SAS | 6-54-110-12 |
RI Integra 3 ITO Leica 2 x SAS |
