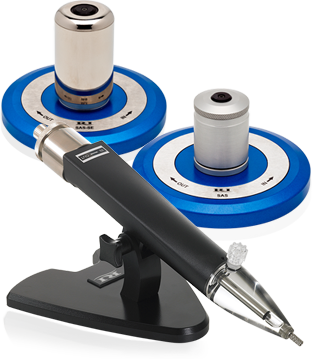

SAS-SETMAir Syringe

• For air-assisted micro-injection and micro-aspiration
• The SAS-SE™ Special Edition smooth operating syringe provides sensitive control, and when required, can generate high pressure or suction.
• The screw-actuated syringe is a small, complete unit, incorporating a heavy circular base.
• Its convenient dimensions enable it to be positioned next to the control lever of a micromanipulator to facilitate single-handed operation of both instruments.
• The syringe is connected by hard polythene tubing to a micropipette holder, which is fitted to a micromanipulator or similar instrument. Suction/injection is obtained by turning the top part of the syringe.
• The equilibration button on the syringe provides a solution to the problem of capillary action when working with small micropipettes and when liquids such as medium are involved. A conveniently situated release button is provided on top of the screw control to achieve equilibration.

SASTMAir Syringe

• For air-assisted micro-injection and micro-aspiration
• The SAS-SE™ Special Edition smooth operating syringe provides sensitive control, and when required, can generate high pressure or suction.
• The screw-actuated syringe is a small, complete unit, incorporating a heavy circular base.
• Its convenient dimensions enable it to be positioned next to the control lever of a micromanipulator to facilitate single-handed operation of both instruments.
• The syringe is connected by hard polythene tubing to a micropipette holder, which is fitted to a micromanipulator or similar instrument. Suction/injection is obtained by turning the top part of the syringe.
• The equilibration button on the syringe provides a solution to the problem of capillary action when working with small micropipettes and when liquids such as medium are involved. A conveniently situated release button is provided on top of the screw control to achieve equilibration.

SASTMAir Syringe

For air-assisted micro-injection and micro-aspiration

• The SAS™ syringe provides sensitive control, extremely low dead-air volume and a capacity of 10ml.
• When required, the syringe can generate high pressure or suction.
• The screw-actuated syringe is a small, complete unit, incorporating a heavy circular base.
• Its convenient dimensions enable it to be positioned next to the control lever of a micromanipulator to facilitate single-handed operation of both instruments.

Product Specifications

SAS-SE Air Syringe

Piston Stroke	30mm
Weight	1.7kg
Overall Dimensions	125mm diameter x 120mm high

SAS™ Air Syringe

Piston Stroke	23mm
Weight	1.4kg
Overall Dimensions	125mm diameter x 90mm high

SOS™ Oil Syringe

Piston Stroke	50mm
Maximum Displaced Volume	830µl
Volume Displaced Per Turn	8.3µl
Total Fill Volume (including tubing)	approx. 2ml
Weight	1.5kg
Overall Dimensions	260 x 135 x 80mm
