Holding Micropipettes
A variety of carefully designed holding pipettes are available that ensure stability of your oocyte during ICSI.
Large and extra large holding pipettes are designed for extra stability of embryos during biopsy and other micromanipulation procedures.

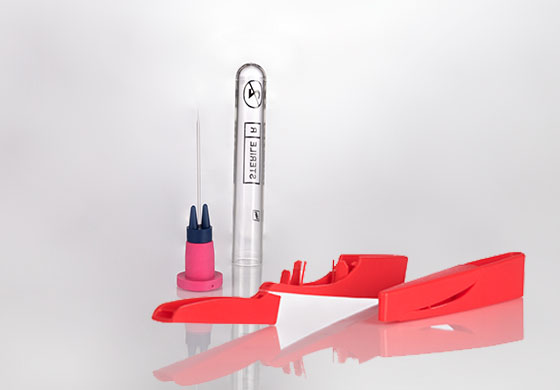

ORIGIO Holding Micropipets
Holding micropipets are used to hold and immobilize the oocyte or embryo.
They have a flat, square opening with a large outer to inner diameter ratio for maximum control.
We offer four standard sizes to suit all micromanipulation techniques.
- High quality holding pipets from the first name in micropipets
- Four sizes offered to cover all micromanipulation needs
TPC Biopsy Micropipettes
Flat or beveled lightly heat polished tips to facilitate safe and easy removal of blastomeres.
Long parallel tapers provide smooth effortless fluid control during micromanipulation.
Manufactured in Australia and supervised by reproductive scientists.
No compromise on quality
Order Codes
ORIGIO Micropipets
Small Holding Micropipets (10 per box)
| Reference | Description | Inner Diameter | Outer Diameter |
|---|---|---|---|
| MPH-SM-0 | Straight Small Holding | 15-20µm | 65-95µm |
| MPH-SM-20 | 20º angled Small Holding | 15-20µm | 65-95µm |
| MPH-SM-25 | 25º angled Small Holding | 15-20µm | 65-95µm |
| MPH-SM-30 | 30º angled Small Holding | 15-20µm | 65-95µm |
| MPH-SM-35 | 35º angled Small Holding | 15-20µm | 65-95µm |
| MPH-SM-45 | 45º angled Small Holding | 15-20µm | 65-95µm |
Medium Holding Micropipets (10 per box)
| Reference | Description | Inner Diameter | Outer Diameter |
|---|---|---|---|
| MPH-MED-0 | Straight Medium Holding | 15-20µm | 95-120µm |
| MPH-MED-20 | 20º angled Medium Holding | 15-20µm | 95-120µm |
| MPH-MED-25 | 25º angled Medium Holding | 15-20µm | 95-120µm |
| MPH-MED-30 | 30º angled Medium Holding | 15-20µm | 95-120µm |
| MPH-MED-35 | 35º angled Medium Holding | 15-20µm | 95-120µm |
| MPH-MED-45 | 45º angled Medium Holding | 15-20µm | 95-120µm |
Large Holding Micropipets (10 per box)
| Reference | Description | Inner Diameter | Outer Diameter |
|---|---|---|---|
| MPH-LG-0 | Straight Large Holding | 25-30µm | 120-150µm |
| MPH-LG-20 | 20º angled Large Holding | 25-30µm | 120-150µm |
| MPH-LG-25 | 25º angled Large Holding | 25-30µm | 120-150µm |
| MPH-LG-30 | 30º angled Large Holding | 25-30µm | 120-150µm |
| MPH-LG-35 | 35º angled Large Holding | 25-30µm | 120-150µm |
Extra Large Holding Micropipets (10 per box)
| Reference | Description | Inner Diameter | Outer Diameter |
|---|---|---|---|
| MPH-XLG-0 | Straight Extra Large Holding | 25-30µm | 150-180µm |
| MPH-XLG-25 | 25º angled Extra Large Holding | 25-30µm | 150-180µm |
| MPH-XLG-30 | 30º angled Extra Large Holding | 25-30µm | 150-180µm |
| MPH-XLG-35 | 35º angled Extra Large Holding | 25-30µm | 150-180µm |
TPC Micropipettes
| Reference | Pipette Type | Finish Style | Tip Angle | Internal Diameter (microns) | Outer Diameter (microns) | Distance tip to bend (mm) |
|---|---|---|---|---|---|---|
| LHC-OD75TA35 | Small Holding | - | 35 | 15 µm | 75 µm | 1mm |
| LHC-OD100TA35 | Medium Holding | - | 35 | 15 µm | 100 µm | 1mm |
| LHC-OD100ID20 | Medium Holding | - | 30 | 20 µm | 100 µm | 1mm |
| LHC-OD100TA20 | Medium Holding | - | 20 | 20 µm | 100 µm | 1mm |
| LHC-ID15 | Standard Holding | - | 30 | 15 µm | 120 µm | 1mm |
| LHS | Standard Holding | - | 30 | 25 µm | 120 µm | 1mm |
| LHC-TA20 | Standard Holding | - | 20 | 25 µm | 120 µm | 1mm |
| LHC-TA35 | Standard Holding | - | 35 | 25 µm | 120 µm | 1mm |
| LHC-ID30 | Standard Holding | - | 30 | 30 µm | 120 µm | 1mm |
| LHC-ID30TA35 | Standard Holding | 35 | 30 µm | 120 µm | 1mm |
