ICSI Pipettes

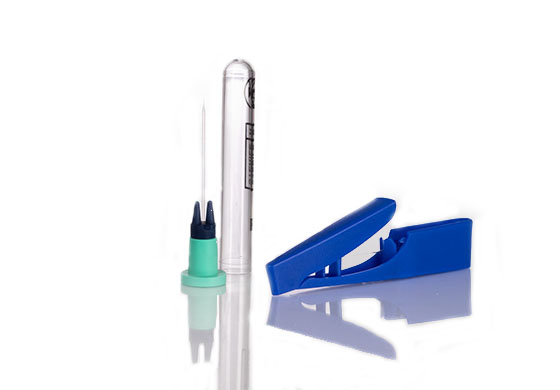

ICSI micropipettes are used to aspirate and inject the sperm directly into the oocyte.
The combined offer of ORIGIO and The Pipette Company provides a large selection of ICSI pipettes to fit all user preferences, including angle choices, bevel length, inner diameter and taper.
Order Codes
ORIGIO ICSI Micropipettes
ICSI Micropipets with Spike (10 per box)
| Reference | Description | Bevel Length | ID |
|---|---|---|---|
| MIC-50-0 | Straight ICSI | 8-10μm | 5.0-5.7μm |
| MIC-50-20 | 20º angled ICSI | 8-10μm | 5.0-5.7μm |
| MIC-50-25 | 25° angled ICSI | 8-10μm | 5.0-5.7μm |
| MIC-50-30 | 30° angled ICSI | 8-10μm | 5.0-5.7μm |
| MIC-50-35 | 35° angled ICSI | 8-10μm | 5.0-5.7μm |
| MIC-50-45 | 45° angled ICSI | 8-10μm | 5.0-5.7μm |
| Reference | Description | Bevel Length | ID |
|---|---|---|---|
| MIC-SI-0 | Straight ICSI | 10-11μm | 5.0-5.7μm |
| MIC-SI-20 | 20º angled ICSI | 10-11μm | 5.0-5.7μm |
| MIC-SI-25 | 25° angled ICSI | 10-11μm | 5.0-5.7μm |
| MIC-SI-30 | 30° angled ICSI | 10-11μm | 5.0-5.7μm |
| MIC-SI-35 | 35° angled ICSI | 10-11μm | 5.0-5.7μm |
| MIC-SI-45 | 45° angled ICSI | 10-11μm | 5.0-5.7μm |
| Reference | Description | Bevel Length | ID |
|---|---|---|---|
| MIC-35-0 | Straight ICSI | 11-12μm | 5.0-5.7μm |
| MIC-35-20 | 20º angled ICSI | 11-12μm | 5.0-5.7μm |
| MIC-35-25 | 25° angled ICSI | 11-12μm | 5.0-5.7μm |
| MIC-35-30 | 30° angled ICSI | 11-12μm | 5.0-5.7μm |
| MIC-35-35 | 35° angled ICSI | 11-12μm | 5.0-5.7μm |
| MIC-35-45 | 45° angled ICSI | 11-12μm | 5.0-5.7μm |
ICSI SlimLine (updated taper design)
| Reference | Description | Bevel Length | ID |
|---|---|---|---|
| MIC-SLM-0 | Straight ICSI | 10-12μm | 4.3-4.9μm |
| MIC-SLM-20 | 20º angled ICSI | 10-12μm | 4.3-4.9μm |
| MIC-SLM-25 | 25° angled ICSI | 10-12μm | 4.3-4.9μm |
| MIC-SLM-30 | 30° angled ICSI | 10-12μm | 4.3-4.9μm |
| MIC-SLM-35 | 35° angled ICSI | 10-12μm | 4.3-4.9μm |
| MIC-SLM-45 | 45° angled ICSI | 10-12μm | 4.3-4.9μm |
Larger ICSI Micropipets (10 per box)
| Reference | Description | Bevel Length | ID |
|---|---|---|---|
| MIC-8-20 | 20º angled ICSI | 8-10μm | 6.2-7.0μm |
| MIC-8-25 | 25° angled ICSI | 8-10μm | 6.2-7.0μm |
| MIC-8-30 | 30° angled ICSI | 8-10μm | 6.2-7.0μm |
| MIC-8-35 | 35° angled ICSI | 8-10μm | 6.2-7.0μm |
| MIC-8-40 | 40° angled ICSI | 8-10μm | 6.2-7.0μm |
Standard Spermatid ICSI Micropipets (10 per box)
| Reference | Description | Bevel Length | ID |
|---|---|---|---|
| MIC-9-20 | 20º angled ICSI | 9-11μm | 6.6-7.9μm |
| MIC-9-25 | 25° angled ICSI | 9-11μm | 6.6-7.9μm |
| MIC-9-30 | 30° angled ICSI | 9-11μm | 6.6-7.9μm |
| MIC-9-35 | 35° angled ICSI | 9-11μm | 6.6-7.9μm |
TPC ICSI Micropipettes
| Reference | Pipette Type | Finish Style | Tip Angle | Internal Diameter (microns) | Distance tip to bend (mm) |
|---|---|---|---|---|---|
| LISR | Standard Injection - 30° Bevel | - | 30 | 5 µm | 1mm |
| LICR-TA35 | Standard Injection - 30° Bevel | - | 35 | 5 µm | 1mm |
| LICR-TA25 | Standard Injection - 30° Bevel | - | 25 | 5 µm | 1mm |
| LICR-TA20 | Standard Injection - 30° Bevel | - | 20 | 5 µm | 1mm |
| LISL | Left Handed Injection - 30° Bevel | Left Handed | 30 | 5 µm | 1mm |
| LICR-SBS | Short Spike Injection - 30° Bevel | Shorter Spike | 30 | 5 µm | 1mm |
| LICR-ID4 | Small ID Injection - 24° Bevel | - | 30 | 4 µm | 1mm |
| LICR-ID4TA30 | Small ID Injection - 24° Bevel | - | 30 | 4 µm | 0.6mm |
| LICR-ID4TL0.6 | Small ID Injection - 24° Bevel | - | 35 | 4 µm | 0.61mm |
| LICR-OD5 | Small ID Injection - 20° Bevel | No Spike | 30 | 4 µm | 1mm |
