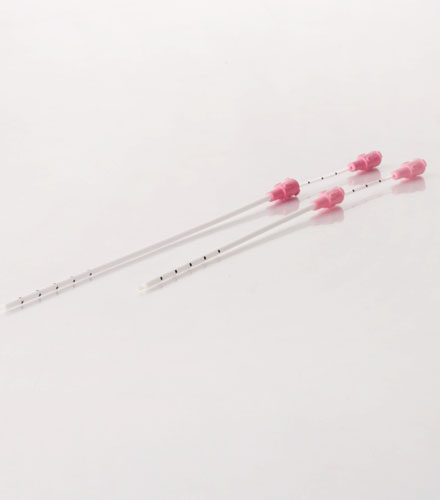

Wallace® Classic
Embryo Transfer Catheters
Our Classic range offers a soft-profiled tip associated with some of the highest pregnancy rates across the world
Key Features
- Soft material and smooth tip minimizes trauma and maximizes success rates
- Formable outer sheath to suit different patient anatomies
- Centimeter markings to show outer sheath depth and inner lumen protrusion for confidence of placement within the uterus
- Trial transfer catheters allow for confident positioning of the outer sheath before introducing the embryo loaded inner. Clinicians have found this technique to have a positive impact on pregnancy rates
- The Classic range is fully compatible with the Sure View range
Product Specifications
| Inner catheter inner diameter | 0.76mm ID |
| Inner catheter outer diameter | 1.52mm OD |
| Outer sheath outer diameter | 2.3mm OD |
|
Volume of catheter not including hub (18cm catheter) | 0.081ml (81µl) |
|
Volume of catheter not including hub (23cm catheter) | 0.104ml (104µl) |
| Volume per cm length of catheter | 0.0045ml (4.5µl) |
| Suggested loading volume | 0.5 to 1cm = 2.25 to 4.5µl |
| Stylet OD | 1.52mm OD |
| Stylet protrusion from outer sheath | 2.0mm |
Order Codes
| Reference | Description |
|---|---|
| 1816NST | Rigid Stylet for introducing the 23cm - Quantity: 10 |
| 1816ST | Rigid Stylet for introducing the 18cm - Quantity: 10 |
| CE118 | Soft 18cm Ultrasound - Quantity: 10 |
| CE123 | Soft 23cm Ultrasound - Quantity: 10 |
| CE418 | Trial transfer catheter blind end (18cm) ultrasound visible - Quantity: 10 |
| CE423 | Trial transfer catheter blind end (23cm) ultrasound visible- Quantity: 10 |
