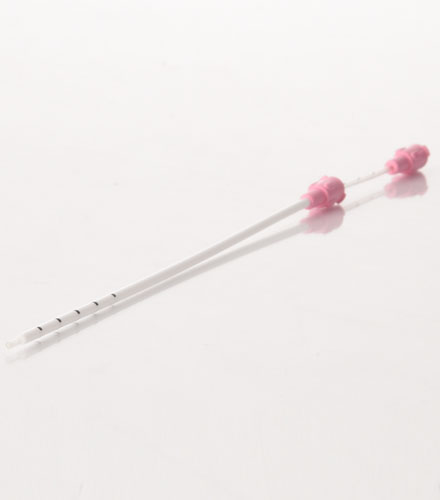

Wallace® SureView
Ultrasound Visible Embryo Transfer Catheters
The unique SureView catheter allows full visibility under ultrasound6 guidance whilst incorporating the hand crafted tip of the widely successful Classic catheter. Ultrasound guided embryo transfer procedures have been recognised by many clinicians and embryologists to improve pregnancy rates.
Key Features
- Visible under ultrasound from hub to tip
- More accuracy and confidence when positioning catheter tip within uterus for embryo transfer
- Combines benefits of the Classic range with SureView patented technology
- Compatible with the Wallace Malleable Stylet for difficult transfers
- The SureView range is fully compatible with the Classic range
Product Specifications
| Inner catheter (ID) | 0.76mm |
| Inner catheter (OD) | 1.52mm |
| Outer sheath (OD) | 2.3mm |
|
Volume of catheter not including hub (18cm catheter) | 0.081ml (81µl) |
|
Volume of catheter not including hub (23cm catheter) | 0.104ml (104µl) |
| Volume per cm length of catheter | 0.0045ml (4.5µl) |
| Suggested loading volume | 0.5 to 1cm = 2.25 to 4.5µl |
| Stylet OD | 1.52mm |
| Stylet protrusion from outer sheath | 2.0mm |
Order Codes
| Reference | Description |
|---|---|
| 1816NST | Rigid Stylet for introducing the 23cm - Quantity: 10 |
| 1816ST | Rigid Stylet for introducing the 18cm - Quantity: 10 |
| CE118 | Soft 18cm Ultrasound - Quantity: 10 |
| CE123 | Soft 23cm Ultrasound - Quantity: 10 |
| CE418 | Trial transfer catheter blind end (18cm) ultrasound visible - Quantity: 10 |
| CE423 | Trial transfer catheter blind end (23cm) ultrasound visible- Quantity: 10 |
